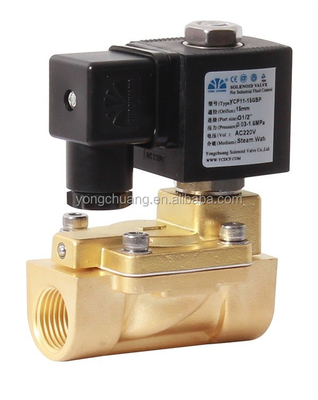

Steam YONGCHUANG YCP11 CE Approved Pilot Operated Diaphragm PTFE Air Compressor Solenoid Valve 12v DC 24v

10 Pieces
MOQ
Steam YONGCHUANG YCP11 CE Approved Pilot Operated Diaphragm PTFE Air Compressor Solenoid Valve 12v DC 24v
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: YCP11
Application: steam, compressed air, pestiside, ammonia,hot water
Material: brass,stainless steel
Temperature of Media: Normal Temperature
Pressure: Medium Pressure, 0.03-1.6Mpa
Power: Solenoid
Media: steam, air, hotwater,chemical media,oil
Port Size: 3/8'-1'
Structure: pilot operated diaphragm PTFE
Standard or Nonstandard: Standard
media: steam, chemical media, hotwater,pesticide
body: brass, stainless steel
seal: PTFE,FKM
voltage: DC,AC
life time: 1 million times
Thread: G.NPT
working mode: 2 way
Approval: CE approved
Основная информация
Model Number: YCP11
Оплата и доставка Условия
Packaging Details: CTN SIZE:21*31*25cm then packed in pallet
Supply Ability: 30000 Piece/Pieces per Month
Характер продукции

Characteristic

1)New design with PTFE diaphragm, orifice seals have 2 options: PTFE or FKM. Diaphragm structure is acceptable for media with dirts,anti stucking.Better than piston valve.

Especially good for new equipped system with some dirts.

Also good for compressed air, by using FKM orifice sealing,PTFE diaphargm good for tearing resistance.

Isolation structure is also available.

Craft hole by using pnuematic structure with bolls, avoid leakage problem

2) Low temperature rising, can also matching with energy saving coil.

Energy saving,starting 105W,holding 4.5VA (AC)

starting 35W,holding 5W(DC)

3) Price:lower than piston type,performance better.

Mediumsteam,air.hotwater,pesticide,etc.
Temperature

PTFE: -30°C to 200 °C

FKM:-10°C to 150 °C

Pressure 0.03-1.6Mpa
Port size3/8'-1''
Port threadG,NPT
Orifice12-25mm
Voltage

DC-12V,24V

AC-24V,120V,110V,220V/50HZ

Tolerance ±10%
Coil

S91BL,15VA(AC),10W(DC),IP65,100%ED

GE11B, start 105W,hold 4.5VA(AC)

start 35W,hold 5W(DC)

Special coils
MaterialBody-Brass,Stainless steel

Seal- PTFE,FKM

Amature tube-stainless steel 304

Plunger-stainless steel430F

Stop-stainless steel 430F

Springs-SS304

Shading rings- red copper
